Crown 4-3/8" - 4

Crown 4-3/8" - 4

Crown 4-3/8" - 4

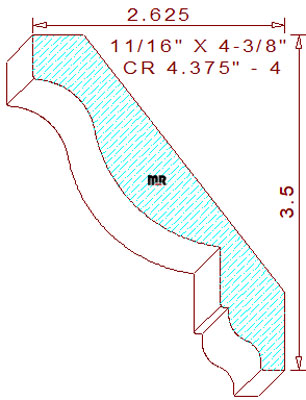

This fashionable 4-3/8" - 4 crown mould measures 4.375" wide by .687" thickness. The striking profile is comprised of a 15/32" tall vertical line at the top, connected to a lovely two tangent radius cyma recta with a 5/8" tall vertical line for rope or dentil molding, joined to a graceful ogee flanked by a 3/32" broad lsegment on top and a 1/4" wide line at the bottom of the detail. The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevels set the installed height at 3-1/2" tall with a projection of 2-5/8" wide.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.416
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.502
Top Cutter Head
Width: 4.375
Depth of Cut: 0.445
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$161.75
$299.25
Not Needed
Total:
$622.75
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$171.25
$319.75
Not Needed
Total:
$662.25
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$180.75
$340.25
Not Needed
Total:
$701.75
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
