Crown Moulding 4-1/2" - 14

Crown Moulding 4-1/2" - 14

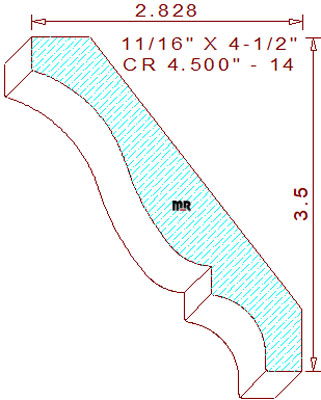

This Crown Moulding 4-1/2" - 14 measures 4.500" wide by .687" thickness, the profile is composed of the classic french curve, fillets, and a cavetto positioned on the bottom, this detail is one of the most commonly utilized profiles in the moulding industry. When installed the height becomes 3-1/2" tall, with a projection of 2-53/64" wide with the spring angles set at thirty-eight and fifty-two degrees, the points of the design are positioned on the same level plane for hold down optimization during the milling process.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
