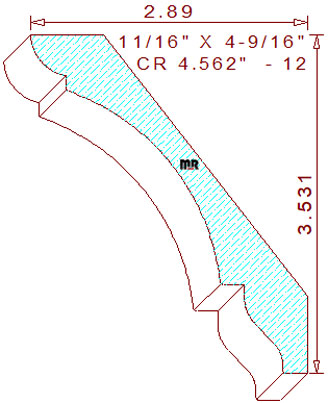

This 4-9/16" Distinctive Crown Moulding - 12 measures 4.562" wide by .687" thickness, the profile is comprised of a large cavetto in the center that is flanked by a vertical fillet and quarter round bead on top with a horizontal fillet and ogee detail positioned at the bottom. When installed the height becomes 3-17/32" tall with a projection of 2-57/64" wide, the spring angles are fixed at thirty-eight and fifty-two degrees with two even points positioned on the same plane to assist in holding down the pattern while milling.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
