Crown Moulding 4-3/4" - 4

Crown Moulding 4-3/4" - 4

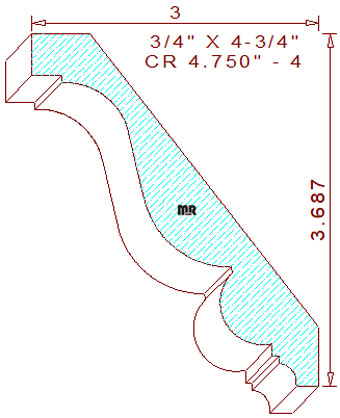

This ornate crown molding 4-3/4" - 4 measures 4.750" wide by .750" thickness. The classic non supporting terminating profile is comprised of a squared notched fillet on top connected to a cyma recta in the middle, attached to a 7/16" radius half round circle flanked by angled lines and small stepped lines with a tiny cavetto with a 15/64" wide horizontal line at the bottom of the pattern. The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevels set the installed height at 3-11/16" tall with a projection of 3" wide. Two high points in the detail were deliberately positioned on the same plane, our specialized design features will assure excellent hold down conditions while milling providing the pressure shoe is parallel to the machine's bed plates. Perhaps a felt lined pressure element may be used to eliminate any unsightly burnish mark left on the half round arc during the milling process.

Utilize some of our user-friendly moulding profiles, all professionally designed by an accomplished draftsman/toolmaker with over thirty-five years of experience in woodworking and former Weinig moulder/grinder field service technician.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 4.750" / Depth of Cut = .476" (top knives).

Thickness = .750" / Depth of Cut = .375" (right blades) & .492" (left knives).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
