Crown 4-61/64"
Crown 4-61/64"

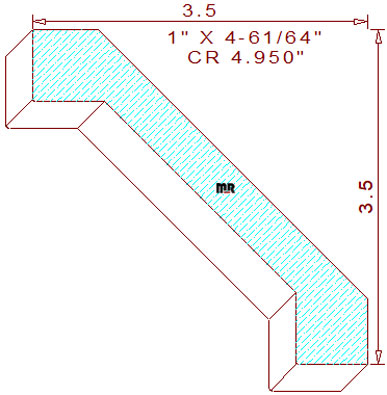

This shaker crown mould 4-61/64" measures 4.950" wide by 1.000" thickness, enabling the detail to be milled sprung (laying horizontally flat) out of five-quarter lumber. The symmetrical profile is composed of a 2-53/64" wide forty-five degree splay faced angled line in the center, flanked by two 3/4" line segments leaving a 3/4" tall and wide line at the top and bottom of the design. The spring angles are fixed at forty-five degrees, these dedicated back bevels set the installed height and projection at an identical dimension of 3-1/2" tall and wide. We offer a couple of similar profiles with different inner dimensions for your review and consideration, crown 4.950" - 1 and crown 5.000" - 34.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.486
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.486
Top Cutter Head
Width: 4.939
Depth of Cut: 0.576
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$123.50
(Template not needed)
$338.83
Not Needed
Total:
$628.83
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$361.58
Not Needed
Total:
$670.58
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$147.25
(Template not needed)
$395.72
Not Needed
Total:
$733.22
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
