Crown Moulding 5"

Crown Moulding 5"

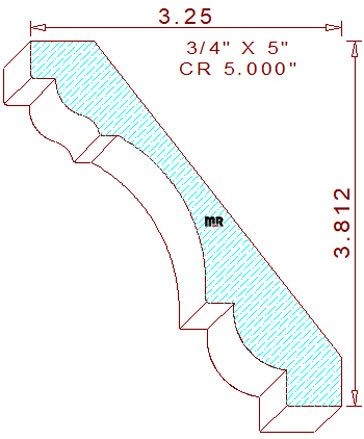

This stylish crown moulding 5" measures 5.000" wide by .750" thickness, allowing the pattern to be milled from four quarter lumber. The attractive profile is comprised of a small two tangent radius cyma reversa in the upper portion, flanked by a 17/64" wide by 3/8" tall squared and a 3/16" wide horizontal line, connected to a 1-3/4" cove in the middle that transitions into a 5/8" ovolo bordered by a stepped and 37/64" wide horizontal line segment in the lower section of the design. We offer a few other width sizes of this shape in our molding catalog, here is just one that is relatively close in size to this pattern for your review and consideration, crown 4.250" - 68."

The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevels set the installed height at 3-13/16" tall with a projection of 3-1/4" wide. Read our commentary about axial constant positioning for crown bevels, the article will help you dial this profile in axially on the first try when milling this detail provided the machine is axially calibrated.Three high points in the detail were deliberately positioned on the same plane, our specialized design features will assure excellent hold down conditions while milling, providing the moulder pressure shoe is parallel to the machine bed plates.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 5.000" / Depth of Cut = .508" (top knives.)

Thickness = .750" / Depth of Cut = .412" (right blades) & .397" (left cutters.)
