Crown 5-3/16" - 6

Crown 5-3/16" - 6

Crown 5-3/16" - 6

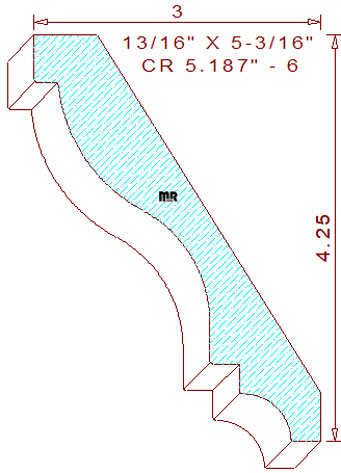

This uniquely stylish 5-3/16" - 6 crown mould measures 5.187" wide by .812" thickness, permitting the pattern to be machined sprung (laying horizontally flat) from four quarter lumber. The free-flowing supporting profile is composed of a 1/2" tall by 1/4" broad perpendicular lines on the top left, connected to a 23/32" convex arc tangent to a 1-5/16" concave semicircle forming the smooth transitioning cyma reversa in the center, attached to a 5/16" wide by 5/16" tall notch and a 1/2" cove with a 5/16" flat line on the bottom right side of the design. To obtain this height & projection, as well as create even hold-down points for milling, the fixed spring angles are thirty-two and fifty-eight degrees, these particular back bevels keep the exposed face side of the profile parallel to the wall and ceiling when installed, as well as set the oriented height at 4-1/4" tall with a projection of 3" wide. We offer an alternative profile with some similar design characteristics within the detail for your review and consideration, crown 5.218" - 1

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.250
Depth of Cut: 0.271
Left Cutter Head
Thickness: 1.250
Depth of Cut: 0.563
Top Cutter Head
Width: 5.187
Depth of Cut: 0.612
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$143.00
$143.00
$339.85
Not Needed
Total:
$625.85
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.00
$151.00
$363.60
Not Needed
Total:
$665.60
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$159.00
$159.00
$387.35
Not Needed
Total:
$705.35
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
