Crown 5-7/32" - 8
Crown 5-7/32" - 8

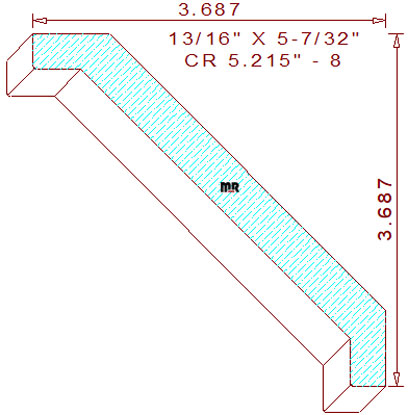

This 5-7/32" - 8 shaker-style crown mould measures 5.215" wide by .812" thickness. The symmetrical profile comprises 3/8" by 1/2" tall and wide squared fillets on both the top and bottom of the detail. They are connected by a 3-31/32" straight beveled line creating a splay face in the center. The spring angles are fixed at forty-five degrees, these specific back bevel cutters set the installed height and projection at an identical dimension of 3-11/16" tall and wide. We have a few other profiles close to this size dimension for your review and consideration, crown 5.312" - 6, crown 5.500" - 1, and crown 5.500" - 37.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.564
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.564
Top Cutter Head
Width: 5.250
Depth of Cut: 0.339
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$167.50
$123.50
(Template not needed)
$356.00
Not Needed
Total:
$647.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$177.00
$133.00
(Template not needed)
$380.00
Not Needed
Total:
$690.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$191.25
$147.25
(Template not needed)
$416.00
Not Needed
Total:
$754.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
