Crown 5-1/2" - 37
Crown 5-1/2" - 37

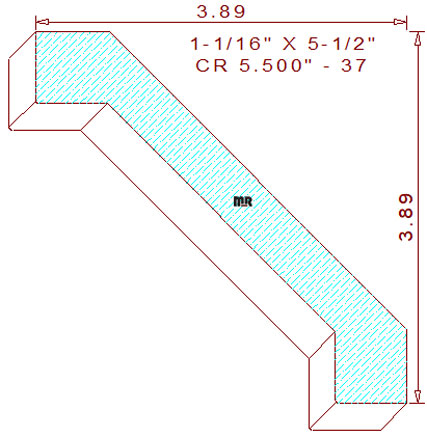

This beveled 5-1/2" - 37 crown mould measures 5.500" wide by 1.062" thickness. The symmetrical profile is comprised of 3/4" by 3/4" tall and wide squared fillets on both the top and bottom of the pattern, connected by a 3-3/8" straight beveled line in the center creating the splay face. The spring angles are fixed at forty-five degrees, these specific back bevel cutters set the installed height and projection at an identical dimension of 3-57/64" tall and wide. We have a few other profiles close to this size for your review and consideration, crown 5.500” - 1, crown 5.312" - 6, crown 5.468" - 2 and crown 5.218" - 8.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.548
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.548
Top Cutter Head
Width: 5.500
Depth of Cut: 0.604
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$123.50
(Template not needed)
$368.00
Not Needed
Total:
$658.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$393.00
Not Needed
Total:
$702.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$147.25
(Template not needed)
$430.50
Not Needed
Total:
$768.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
