Crown Moulding 5-7/16" - 3

Crown Moulding 5-7/16" - 3

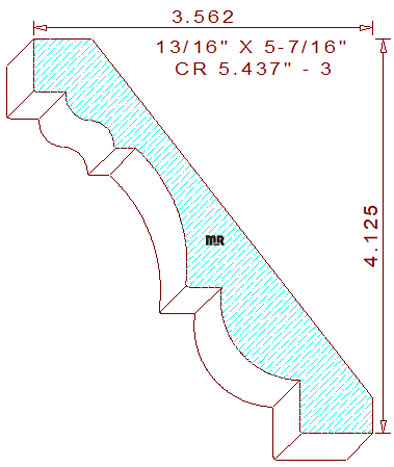

This elegant crown moulding 5-7/16" - 3 measures 5.437" wide by .813" thickness. The beautifully unique design is comprised of a 1-5/8" radius concave arc in the center, connected to a two tangent radius cyma reversa flanked by small horizontal lines with a 9/16" tall vertical line on top. The lower portion consists of a 27/32" radius ovolo with a 49/64" wide horizontal fillet at the bottom of the pattern. We have a collection of six matching profiles of various size widths, heights and projections for your review and consideration, crown 2.500" - 21, crown 3.000" - 6, crown 4.000" - 3, crown 7.000" - 38 and crown 8.500" - 6.

The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevel cutters set the installed height at 4-1/8" tall with a projection of 3-9/16" wide. Three high points in the detail were deliberately positioned on the same plane, our consummate design practices will assure excellent hold down conditions while milling the detail on an industrial moulder providing the pressure shoe is parallel to the bed plates.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 5.437" / Depth of Cut = .678" (top knives.)

Thickness = .813" / Depth of Cut = .381" (right blades) & .290" (left cutters.)

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
