Crown 5-9/16" - 3
Crown 5-9/16" - 3

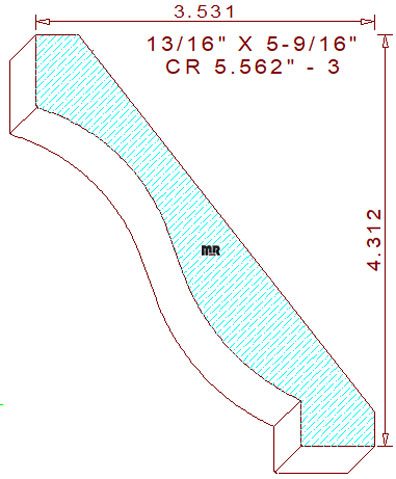

This 5-9/16" - 3 cyma recta crown mould measures 5.562" wide by .813" thickness. The traditional profile is comprised of a 2-3/8" radius convex arc tangent off of a 2-1/16" radius concave circle in the center, attached to a 25/32" tall vertical fillet on top. The lower section of the design consists of a 31/64" vertical line connected to a 49/64" wide horizontal fillet on the bottom of the pattern. The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevels set the installed height at 4-5/16" tall with a projection of 3-17/32" wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.351
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.223
Top Cutter Head
Width: 5.562
Depth of Cut: 0.683
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$166.50
$396.47
Not Needed
Total:
$729.47
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$176.00
$421.72
Not Needed
Total:
$773.72
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$190.25
$459.59
Not Needed
Total:
$840.09
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
