Crown 5-9/16" - 6
Crown 5-9/16" - 6

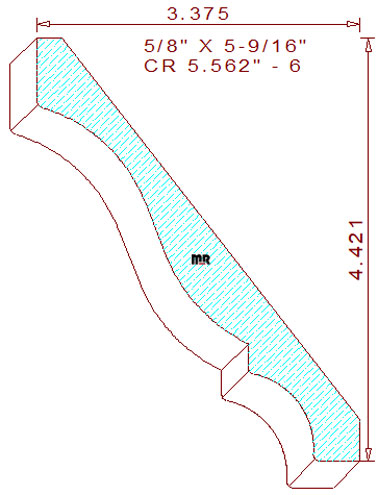

This classic 5-9/16" - 6 crown mould measures 5.562" wide by .625" thickness. The terminating colonial style profile is comprised of a 47/64" tall vertical line on top, connected to a two tangent radius cyma recta in the middle, joined to a 5/16" tall vertical line with a 25/32" cavetto and a 31/64" wide horizontal line at the bottom of the pattern. The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevels set the installed height at 4-27/64" tall with a projection of 3-3/8" wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.210
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.272
Top Cutter Head
Width: 5.562
Depth of Cut: 0.446
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$166.50
$371.22
Not Needed
Total:
$704.22
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$176.00
$396.47
Not Needed
Total:
$748.47
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$190.25
$434.34
Not Needed
Total:
$814.84
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
