Crown Moulding 5-13/16" - 2

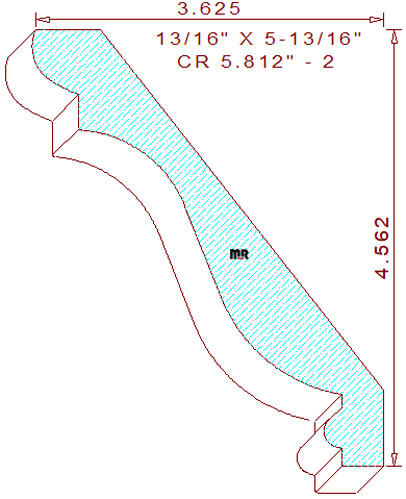

This lovely crown molding 5-13/16" - 2 measure 5.826" width by .813" thickness, permitting the use of a 6-1/16" wide blank of four-quarter lumber for milling sprung (laying horizontally flat) on an industrial molder. The custom supporting profile contains a 7/16" radius convex arc tangent to a short angled line merged with a 3/8" tall vertical fillet on the top left. Joined to a graceful two tangent radius cyma recta with a teardrop-shaped bead, flanked by two short vertical fillets with a 7/16" flat line on the bottom right side of the design. The fixed spring angles are set at thirty-eight and fifty-two degrees; these particular back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 4-9/16" tall with a 3-5/8" projection across the top.

Review our commentary about axial constant positioning for crown bevels, the article will help you dial this profile in axially provided the machine is properly calibrated. Two high points in the pattern layout were deliberately positioned on the same plane, our disciplined design features will assure excellent hold down conditions while milling as long as the pressure shoe is parallel to the machine bed-plates.

For knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 5.812" / Depth of Cut = .446" (top knives).

Thickness = .812" / Depth of Cut = .418" (right blades) & .624" (left cutters).
