Crown Moulding 5-15/16" - 9

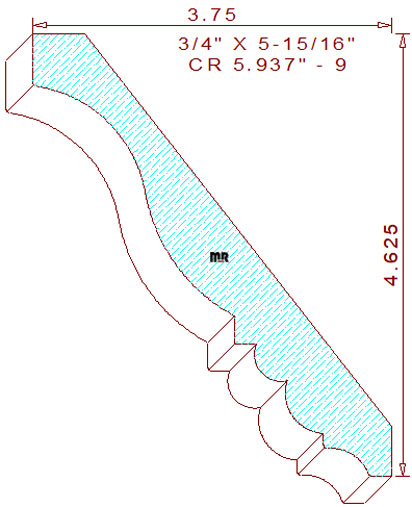

This elegant crown molding 5-15/16" - 9 measures 5.953" width by .750" thickness, allowing the use of four quarter lumber for machining sprung (laying horizontally flat) on a commercial-grade molder. The beautiful terminating profile contains a 35/64" tall vertical fillet on the top left. It joins to a graceful two tangent radius cyma recta with a 15/64" wide by 19/64" vertical perpendicular lines in the center. They connect to a 9/32" & 27/64" convex quarter-round arcs with a 5/32" tall line merged to a 27/64" cove with a 7/32" flat section on the bottom right side of the design. The fixed spring angles get set at thirty-eight and fifty-two degrees; these particular back bevels keep the exposed face side of the profile parallel to the wall and ceiling when installed, and set the oriented height at 4-5/8" tall with a projection of 3-3/4" across the top.

Ever notice why some moldings look better than other trim patterns in homes, offices, and older buildings. You may want to review our article on knife marks per inch. Read about how machine feed rates, rpm's of cutter heads can directly determine the quality of the products you produce. Following or exceeding industry standards will allow your company to lead the way in molding artisanship.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 5.937" / Depth of Cut = .513" (top knives).

Thickness = .750" / Depth of Cut = .337" (right blades) & .415" (left cutters).
