Crown 6-3/8" - 11
Crown 6-3/8" - 11

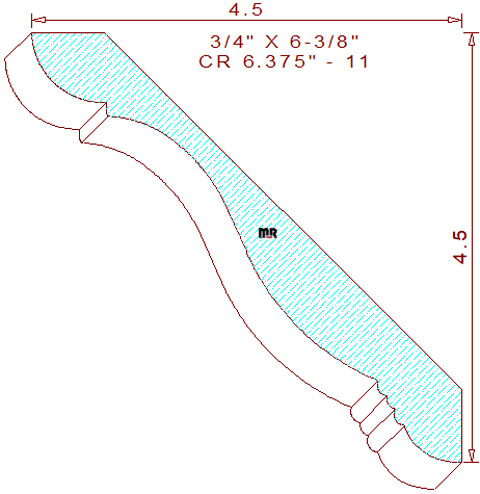

This elegant 6-3/8" - 11 crown mould measures 6.364" wide by .750" thickness, permitting the use of four-quarter lumber for milling on an industrial moulder. The beautiful supporting profile contains a 3/4" quarter round convex arc tied to a 9/64" vertical line on the top left. This area connects to a graceful two tangent radius cyma recta in the center, and three consecutive 1/8" beads with a two tangent elliptical-shaped quarter circle on the bottom right side of the design. The spring angles are at forty-five degrees, these dedicated back bevels keep the face side of the profile parallel to the wall and ceiling when installed, they also lock in the positioned height at 4-1/2" tall with a projection of 4-1/2" wide. We offer a couple of similar profiles in the same size with different degree back-cuts for your review and consideration, crown 6.375" - 7, and crown 6.375" - 14.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.541
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.541
Top Cutter Head
Width: 6.375
Depth of Cut: 0.473
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$123.50
(Template not needed)
$413.50
Not Needed
Total:
$703.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$442.00
Not Needed
Total:
$751.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$147.25
(Template not needed)
$484.75
Not Needed
Total:
$822.25
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
