Crown Moulding 6-3/8" - 7

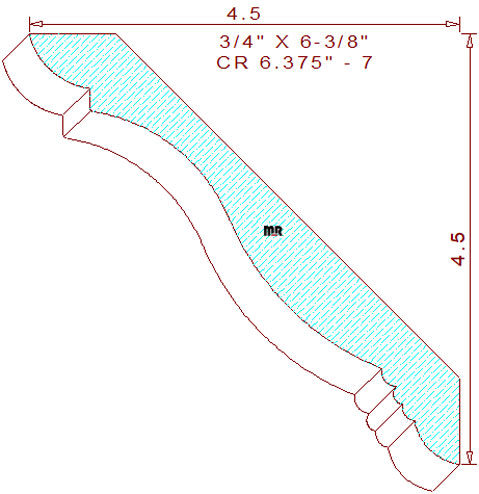

This visually striking crown molding 6-3/8" - 7, measures 6.375" wide by .750" thickness, allowing the use of four quarter lumber for milling on a commercial-grade molder. The lovely supporting profile contains a 49/64" radius quarter round convex arc tied into a 1/4" high vertical fillet on the top left. This section joins a 1-7/8" concave semicircle tangent to a 2-55/64" curvature creating the beautiful cyma recta in the center, merged with a series of three consecutive small beads with a 9/16" quarter round arc at the bottom right side of the design. The set spring angles are at forty-five degrees; these dedicated back bevels keep the face side of the profile parallel to the wall and ceiling when installed, they also lock in the positioned height at 4-1/2" tall with a projection of 4-1/2" across the top. We offer a few similar profiles in the same size with different degree back-cuts for your review and consideration, crown 6.375" - 11, and crown 6.375" - 14.

Utilize any of our user-friendly molding profiles, all professionally designed by an accomplished draftsman/toolmaker with over forty years' experience in woodworking, and a former Weinig molder/grinder field service technician. From just an idea in one's mind to reality in their home, our custom profiles reflect the creative style of your imagination, let us assist you in complementing the architectural decor of any room with any one or more of our attractive molding patterns.

For molding knife quoting purposes click to open the calculator below, we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 6.375" / Depth of Cut = .362" (top knives).

Thickness = .750" / Depth of Cut = .642" (right blades) & .642" (left cutters).
