Crown 6-7/8" - 4
Crown 6-7/8" - 4

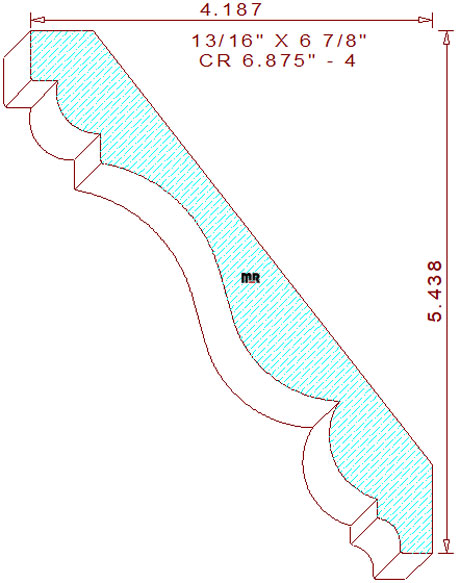

This beautiful 6-7/8" - 4 crown mould measures 6.875" wide by .812" thickness, enabling the pattern to be milled sprung (laying horizontally flat) out of four quarter lumber. The simply lavish profile is composed of a 33/64" tall by 9/32" wide perpendicular lines on the top left, connected to a 7/16" radius ovolo with a 9/32" tall line segment in the upper portion, the center consists of a free-flowing two tangent radius cyma recta, joined to a 11/16" radius convex semicircle with a 3/16" vertical line that joins to a 17/64" cove with a 21/64" broad flat segment on the bottom of the design. The spring angles are fixed at thirty-eight and fifty-two degrees, these particular back bevels keep the inner profile parallel to the wall and ceiling as well as set the installed height at 5-7/16" tall with a projection of 4-3/16" wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.510
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.568
Top Cutter Head
Width: 6.875
Depth of Cut: 0.461
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$166.50
$439.50
Not Needed
Total:
$772.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$176.00
$470.00
Not Needed
Total:
$822.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$190.25
$515.75
Not Needed
Total:
$896.25
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
