Crown 7-13/16" - 7

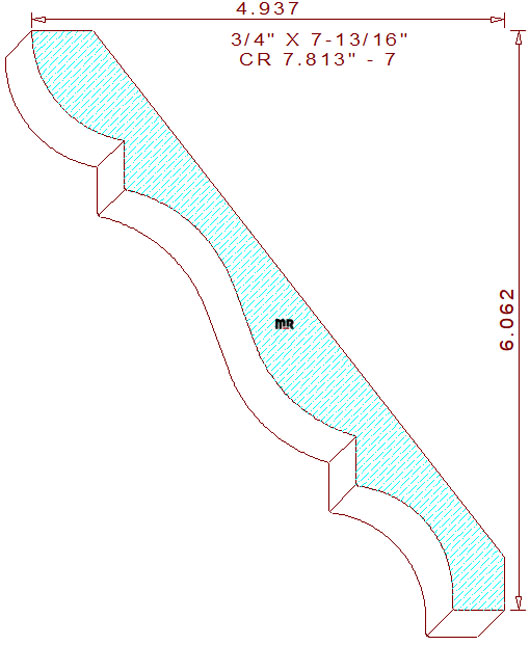

This fashionable 7.813" - 7 crown mould measures 7.816" width by .750" thickness, enabling the use of four quarter lumber for milling sprung (laying horizontally flat) on a commercial moulder. The stylish supporting profile contains a 1-9/64" convex arc joined to a 1/2" vertical fillet on the top left. The half-inch tall line connects to a 1-9/16" concave semicircle tangent to a 1-9/16" convex arc forming the graceful cyma recta in the center. The lower portion consists of a 17/32" vertical fillet merged with a 1-1/8" cove with a 35/64" flat line on the design's bottom right side. The fixed spring angles are set at thirty-eight and fifty-two degrees; these particular back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 6-1/16" tall with a projection of 4-15/16" across the top.

Utilize any of our user-friendly molding profiles, all professionally designed by an accomplished draftsman/toolmaker with over forty years' experience in woodworking and a former Weinig field service technician. From an idea in your mind to reality in your beautiful home, our custom profiles reflect your imagination's creative style. Let us help you complement the architectural decor of any room with any one or more of our attractive moulding patterns.
