Crown Moulding 8" - 10

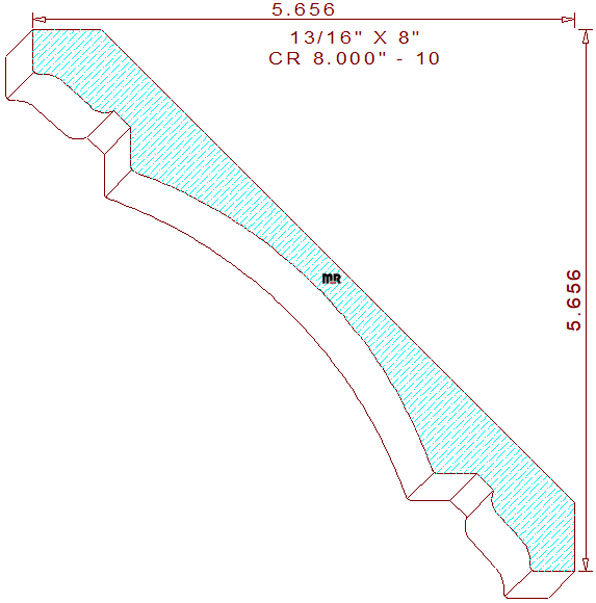

This gorgeous crown moulding 8" - 10 measures 8.000" wide by .812" thickness, enabling the pattern to be machined sprung (laying horizontally flat) out of four quarter lumber. The symmetrical terminating profile is composed of a 5-9/64" concave semicircle in the center, flanked by a 7/16" vertical and horizontal line segment with a 1/4" wide sunk fillet, attached to a two tangent radius cyma recta & reversa with a 29/64" tall and wide line on the top and bottom of the design. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height and projection at an identical dimension of 5-21/32" tall and wide. We offer this detail in a smaller width dimension for your review an consideration, crown molding 7.062" - 3.

Weinig's light blue colored full ceramic grinding wheel hogging at 2000 rpm, with a twenty-five-degree back clearance angle will rough grind a set of high-speed steel cutters in a minimal amount of time. Also review our article on the importance of having the profile grinder level, this commentary will insure prolonged use of your machinery while maintaining consistent perfection when manufacturing cutters.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 8.000" / Depth of Cut = .500" (top knives.)

Thickness = .812" / Depth of Cut = .509" (right blades) & .509" (left cutters.)
