Crown Moulding 8" - 20

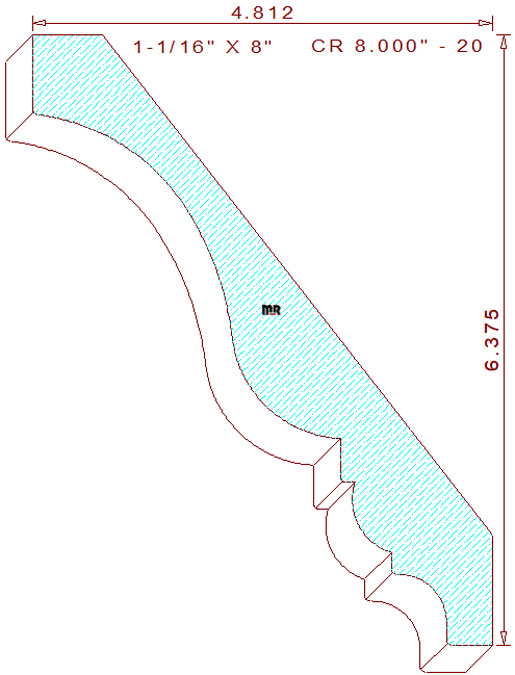

This attractive crown moulding 8" - 20 measures 7.986" wide by 1.062" thickness, permitting the pattern to be milled sprung (laying horizontally flat) out of five quarter lumber. The stunning terminating profile is composed of a 13/16" tall vertical line segment on the top left, attached to a smooth two tangent radius cyma recta, joined to a 5/32" wide by 15/32" tall perpendicular lines in the center, attached to a 47/64" high convex semicircular arc, merged with a 7/32" tall fillet and a 1/2" cove with a 15/32" wide flat line on the bottom right side of the design. The spring angles are fixed at thirty-eight and fifty-two degrees, these particular back bevels keep the inner section of the profile parallel to the wall and ceiling when installed, as well as set the oriented height at 6-3/8" tall with a projection of 4-13/16" wide.

We provide the cut steel size on all our template & knife designs, this important information allows you to purchase the correct size width of knife steel before you start grinding procedures for production, this is just one more example of our enthusiasm for the overall success of your woodworking business.

For moulding knife quoting purposes click to open the calculator below, we supplied only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions feel free to print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 8.000" / Depth of Cut = .623" (top knives).

Thickness = 1.062" / Depth of Cut = .450" (right blades) & .907" (left cutters).
