Crown 8-3/16"

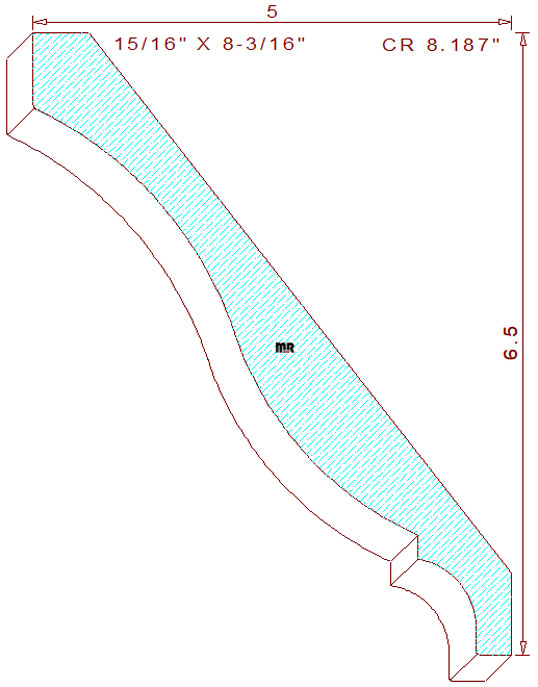

This attractive 8-3/16" colonial crown mould measures 8.201" wide by .937" thick, requiring the use of five-quarter lumber for milling on a commercial-grade moulder. The old-world terminating profile features a 13/16" vertical fillet on the upper left. The straight line connects a four-inch concave semicircle, tangent to a 3-37/64" convex arc, creating the cyma recta in the center. The s-shaped curvature joins a 1/4" tall vertical line to a 23/32" cove and a 3/8" flat line on the bottom right side of the design. The fixed spring angles are set at thirty-eight and fifty-two degrees; these particular back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 6-1/2" tall with a projection of 5" across the top.
