Door Jamb 3/4" - 1

Door Jamb 3/4" - 1

Door Jamb 3/4" - 1

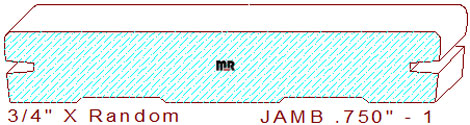

This modern 3/4" - 1 interior door jamb measure .750" in thickness, allowing the pattern to be milled out of four-quarter lumber. The widths are manufactured to any desired size within the parameters of the machinery used to cut the design. The most typical width sizes are 4-9/16" wide for a 2" x 4" frame with 1/2" sheetrock wall, 5-1/2" wide for a 2" x 4" frame with stucco or thicker drywall, and 6-9/16" wide for a 2" x 6" frame, or block wall. The contemporary profile is used when no door casing will be installed around the perimeter of the door jamb; it will provide a clean, crisp edge after the joint compound is applied between the two entities. The side of the pattern is comprised of a 3/32" rounded edge with a 3/32" tall line segment with a 5/32" wide by 3/8" deep dado for a drywall reglet to slide into; it tapers back five degrees on the bottom to assure superior seating between the reglet and jamb edge. We offer an alternative jamb with similar design characteristics for your review and consideration jamb .750" - 4.

Our professionally designed acrylic templates and knives include the required draft angles to maintain the ability to sharpen the blades properly without modifying the detail, while simultaneously prolonging the milling time between sharpening.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.750
Depth of Cut: 0.375
Left Cutter Head
Thickness: 0.750
Depth of Cut: 0.375
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$130.50
$87.50
(Template not needed)
Not Needed
Not Needed
Total:
$218.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.50
$94.50
(Template not needed)
Not Needed
Not Needed
Total:
$232.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$144.50
$101.50
(Template not needed)
Not Needed
Not Needed
Total:
$246.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
