Fluted Moulding 3-1/4" - 12

Fluted Moulding 3-1/4" - 12

Fluted Moulding 3-1/4" - 12

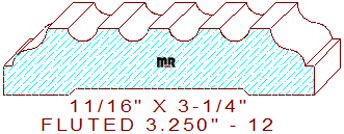

This distinguished fluted casing molding 3-1/4" - 12 measure 3.250" width by .688" thickness permitting the use of four quarter lumber for machining on an industrial-grade molder. The symmetrical profile contains four 5/16" wide concave semicircles, flanked by five 7/32" broad fillets on top. The line segments connect to a 7/32" concave semicircle tangent off of a 3/16" convex arc, creating the ogee with a 3/32"wide flat line leaving a 5/16" thickness dimension on both sides of the design.

Are you looking to become more efficient in your current milling production? Please read our commentary on moulder production tips, these clever suggestions were written to help you save time and money on a daily task. If you have any questions or concerns about knife grinding procedures for any of our profiles, please contact us, we would be honored to assist you.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 3.250" / Depth of Cut = .375" (top knives) & .063" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
