Handrail 2-3/8" - 5

Handrail 2-3/8" - 5

Handrail 2-3/8" - 5

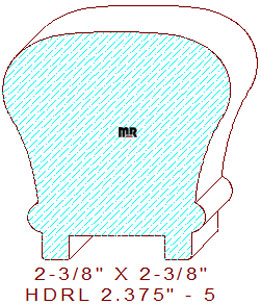

This bread loaf-shaped 2-3/8" - 5 handrail measures 2.375" wide by 2.375" thick, necessitating the rough lumber blank be glued together from four-quarter lumber to a 2-5/8" squared dimension. This profile is composed of a three-tangent radius semicircular arc on top. The sides consist of a two tangent radius cyma recta with a 5/16" tall half-round bead and a 9/32" tall vertical line with a 3/64" eased edge; the bottom retains a one-inch wide by one-quarter inch deep dado flanked by a 9/32" broad segment on each side. We offer this beautifully typical profile in a wide range of sizes; here are just a few you may want to review and consider: handrail 2.250" - 1 and handrail 2.625" - 30.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 2.375
Depth of Cut: 0.579
Left Cutter Head
Thickness: 2.375
Depth of Cut: 0.579
Top Cutter Head
Width: 2.375
Depth of Cut: 0.304
Bottom Cutter Head
Width: 2.375
Depth of Cut: 0.250

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.25
$156.25
(Template not needed)
$199.25
$199.25
Total:
$754.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$211.75
$168.75
(Template not needed)
$211.75
$211.75
Total:
$804.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$224.25
$181.25
(Template not needed)
$224.25
$224.25
Total:
$854.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
