Picture Frame 3-1/8" - 1

Picture Frame 3-1/8" - 1

Picture Frame 3-1/8" - 1

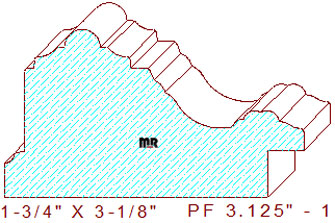

This ornate picture/mirror frame3-1/8" - 1 measure 3.125" wide by 1-3/4" thickness allowing the detail to be milled from eight-quarter lumber. The elegant profile is comprised of a combination of many distinct geometrical shapes, including half and quarter-round circles, numerous cavetto's, small cyma reversa, and deep scotia all connected to one another by horizontal and vertical line segments. The rabbet measures 3/8" wide by 1/2" tall, this can be adjusted axially to any desired size.

Review our commentary on custom-made pressure shoes this helpful step-by-step article will help you mill this profile to perfection. Did you know we design and grind knives for all the major brand names of machinery including Weinig, Leadermac, Diehl, Kentwood, Wadkin, Scmi, Shop Fox, and more? Try our exceptional services; you'll be delighted with the results, all the beautiful patterns you manufacture will surely be a cut above the rest. Before you begin knife grinding procedures, please read our article on knife cutting circles to see if you can safely mill this pattern on your machinery, this profile will not be able to be milled on certain models of molders.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.125" / Depth of Cut = 1.227" (top knives.)

Thickness = 1.750" / Depth of Cut = .207" (right blades) & .375" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
