Shiplap Siding 7-1/8"

Shiplap Siding 7-1/8"

Shiplap Siding 7-1/8"

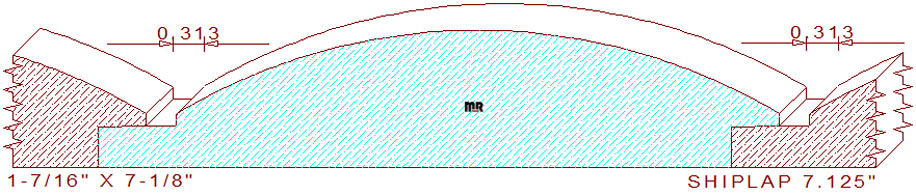

This log cabin shiplap siding 7-1/8" measures 7.125" wide by 1.437" thickness, permitting the detail to be milled from eight-quarter lumber. The stylish profile is composed of a 6-5/16" wide 6-1/8" radius arc in the center, attached to a 13/16" wide line segment, one-half inch of this line is tapered by five degrees to allow the end of the board to fit under the 1/2" wide by 1/2" tall rabbet on the opposites side. When two pieces of milled lumber are joined together, they create a 6-5/8" wide face coverage dimension with a 5/16" wide by 1/8" deep channel between the merged planks.

We offer a few alternative profiles in the same width but with different inner dimensions for your review and consideration, log siding 7.125" - 4, shiplap siding 7.125" - 5 and log cabin siding 7.125" - 6. Mirror Reflections has over thirty-six years experience in designing and manufacturing some of the finest quality acrylic templates and profile knives in the woodworking industry. Encounter our excellent customer service with affordable pricing by offering us an opportunity to demonstrate our abilities, you will be pleasantly impressed with our services.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 7.125" / Depth of Cut = 1.040" (top knives.)

Thickness = 1.437" / Depth of Cut = .500" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
