Shiplap Siding 7-1/8" - 5

Shiplap Siding 7-1/8" - 5

Shiplap Siding 7-1/8" - 5

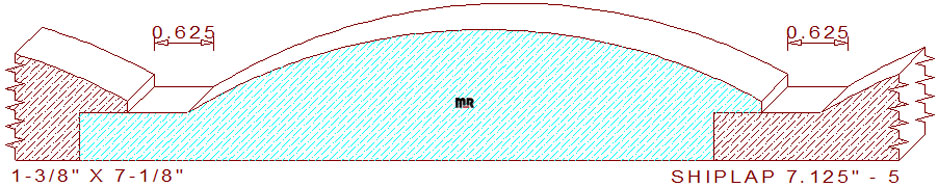

This 7-1/8" - 5 log cabin shiplap siding measures 7.125" wide by 1.375" thickness, permitting the detail to be machined from either six or eight-quarter lumber. The attractive profile is composed of a six-inch wide 5-61/64" radius arc in the center, attached to a 1-1/8" wide line segment, one-half inch of this line is tapered by four degrees to allow the end of the board to fit under the 1/2" wide by 1/2" tall rabbet on the opposites side. We two pieces of milled lumber are joined together they create a 6-5/8" wide face coverage dimension with a 5/8" wide channel between the merged planks. We offer a few alternative profiles in the same width but with different inner dimensions for your review and consideration, log cabin siding 7.125", log siding 7.125" - 4 and log cabin siding 7.125" - 6.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 1.375
Depth of Cut: 0.500
Top Cutter Head
Width: 7.125
Depth of Cut: 0.928
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$149.25
$468.25
Not Needed
Total:
$617.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$157.75
$499.75
Not Needed
Total:
$657.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$166.25
$531.25
Not Needed
Total:
$697.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
