Shiplap Siding 7-1/8" - 6

Shiplap Siding 7-1/8" - 6

Shiplap Siding 7-1/8" - 6

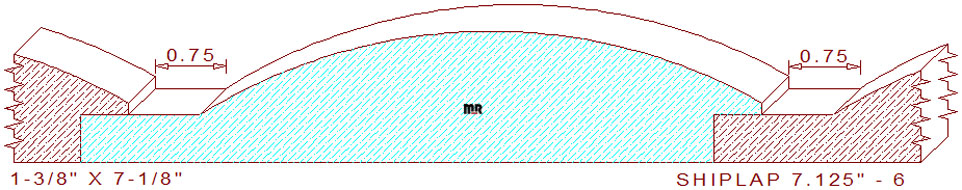

This log cabin 7-1/8" - 6 shiplap siding measures 7.125" wide by 1.375" thickness, allowing the detail to be machined out of six-quarter lumber, the face coverage dimension when installed is 6-5/8" wide. The beautiful profile is composed of a 5-23/32" radius semicircular arc in the center, attached to a 1-1/4" wide line segment, 1/2" of this line is hidden under the piece of siding in front of it, this creates a decorative 3/4" wide sunk fillet between the joined boards when installed. log cabin siding 7.125", log siding 7.125" - 4 and log cabin siding 7.125" - 5.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 1.375
Depth of Cut: 0.500
Top Cutter Head
Width: 7.125
Depth of Cut: 0.928
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$149.25
$468.25
Not Needed
Total:
$617.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$157.75
$499.75
Not Needed
Total:
$657.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$166.25
$531.25
Not Needed
Total:
$697.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
