Shiplap Moulding 7-1/4" - 2

Shiplap Moulding 7-1/4" - 2

Shiplap Moulding 7-1/4" - 2

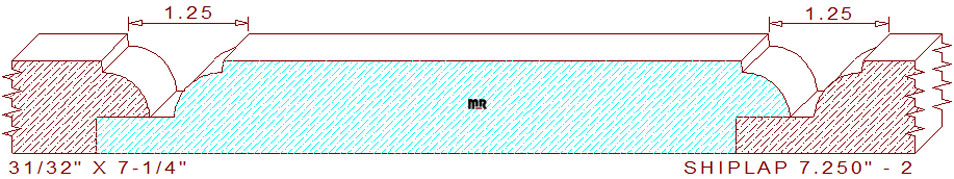

This decorative shiplap siding molding 7-1/4" - 2 measures 7.250" wide by .968" thickness, necessitating the use of five quarter lumber for milling on an industrial molder. The beautifying profile is composed of a 5-7/16" wide flat line segment in the center, flanked by a 1/8" vertical drop in elevation that joins to a 1/2" quarter round bead, the left side retains a 13/16" wide by 3/8" perpendicular lines. The opposite side maintains a 9/16" wide by 3/8" rabbet. When two pieces of milled lumber get joined, they create an embellished 1-1/4" wide double ovolo shape with a face coverage dimension of 6-11/16" wide.

Are you looking to become more efficient in your current milling production? Please read our commentary on moulder production tips, these clever suggestions were written to help you save time and money on a daily task. If you have any questions or concerns about knife grinding procedures for any of our profiles, please contact us, we would be honored to assist you.

For knife quoting purposes click to open the calculator below, we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, feel free to print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 7.250" / Depth of Cut = .684" (top knives).

Thickness = .968" / Depth of Cut = .562" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
