Baseboard 8" - 7
Baseboard 8" - 7

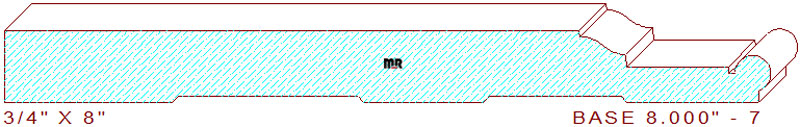

This pencil bead 8" - 7 base moulding measures 8.000" wide by .750" thickness, allowing the detail to be machined out of four-quarter lumber. The beautiful profile is composed of a six-inch broad flat area on the top left center. It's attached to a 1/16" vertical drop in elevation that joins to a two tangent radius ogee with a 1/8" steep step. The short line joins a 1-1/16" recessed area at a 3/8" thickness dimension with a 1/16" wide sunk fillet and a 3/16" wide pencil bead on the right side of the pattern. This mopboard can be used in conjunction with a few other matching profiles with the same style; you may want to review and consider door casing 4.250" - 16, chair rail 6.500" - 1 and door casing 5.000" - 30.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.750
Depth of Cut: 0.188
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 8.000
Depth of Cut: 0.448
Bottom Cutter Head
Width: 8.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$134.00
Not Needed
$498.00
$498.00
Total:
$1130.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$141.00
Not Needed
$533.00
$533.00
Total:
$1207.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.50
Not Needed
$585.50
$585.50
Total:
$1322.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
