Chair Rail 6-1/2" - 1
Chair Rail 6-1/2" - 1

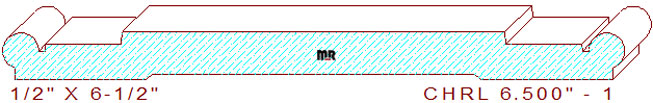

This distinctive 6-1/2" - 1 chair rail measures 6.500" wide by .500" thickness, allowing the detail to be machined out of four-quarter lumber. The custom symmetrical profile is composed of a four-inch broad line in the center flanked by 1/8" vertical lines, connected to a 13/16" broad segment at a 3/8" thickness dimension, joined to a 1/16" wide sunk fillet with a 3/8" wide pencil bead on each side edge of the pattern. This window mullion can be used with a few other matching profiles in the same style. You may want to review and consider these attractive designs, window casing 4.250" - 16, door casing 5.000" - 30 and baseboard 8.000" - 7.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 6.500
Depth of Cut: 0.117
Bottom Cutter Head
Width: 6.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$420.00
$420.00
Total:
$840.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$449.00
$449.00
Total:
$898.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$492.50
$492.50
Total:
$985.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
