Door/Window Casing 4-1/4" - 16

Door/Window Casing 4-1/4" - 16

Door/Window Casing 4-1/4" - 16

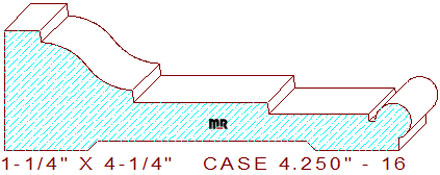

This innovative 4-1/4" - 16 pencil bead door/window casing measures 4.250" wide by 1.250" thickness, necessitating the use of six-quarter lumber for milling on an industrial moulder. The attractive profile is comprised of a 3/8" wide by 1/8" tall raised fillet on the left, attached to a two tangent radius cyma reversa that transitions into a 1-13/32" wide by 1/8" deep stepped line segment in the center, connected to a 1-1/16" wide by 1/8" drop in elevation that joins to a 1/16" wide sunk fillet with a 3/8" wide three-quarter circle on the thin side of the pattern. We offer a few matching profiles in this same style you may want to review and consider, door casing 5.000" - 30, chair rail 6.500" - 1 and baseboard 8.000" - 7.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.250
Depth of Cut: 0.188
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.250
Depth of Cut: 0.948
Bottom Cutter Head
Width: 4.250
Depth of Cut: 0.093

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$143.00
Not Needed
$313.00
$293.00
Total:
$749.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.00
Not Needed
$333.00
$313.00
Total:
$797.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$159.00
Not Needed
$353.00
$333.00
Total:
$845.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
