Chair Rail Moulding 3" - 19

Chair Rail Moulding 3" - 19

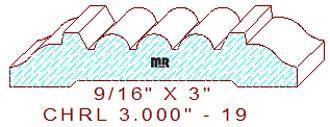

This Beaded Chair Rail Moulding 3" - 19 measures 3.000" wide by .563" thickness with a .552" depth of cut on the top horizontal set of profile knives. Search our backout category for an appropriate relief cut for this pattern, we have a few options to select from.

The symmetrical detail is comprised of three, 3/16" radius half round circles divided by 1/16" wide fillets in the center, flanked by chamfers that join to a 11/64" wide raised fillet, attached to a two tangent radius cyma reversa positioned on each side edge of the design. We have a few similar style patterns you may want to review and consider, chair rail 3.000" - 61, chair rail 3.000" - 75, and chair rail 3.000" - 76.

Architects, interior designers, lumber mills, and moulding manufacturers have been utilizing our vast variety of creative designs for years, we trust you will find that special profile to enhance the architectural style of your home. If you have any questions or concerns about knife grinding procedures for any of our profiles, please contact us, we would be honored to assist you.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
