Chair Rail Moulding 3" - 76

Chair Rail Moulding 3" - 76

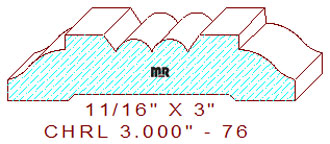

This beaded chair rail/symmetrical casing moulding 3" - 76 measures 3.000" wide by .687" thickness. The evenly balanced detail is comprised of two 13/64" radius half round circles in the center, flanked by chamfers that join to a 13/32" wide by 5/32" tall raised fillet, attached to a two tangent radius cyma reversa positioned on each side edge of the design. We have a few similar style patterns you may want to review and consider, chair rail 3.000" - 19, chair rail 3.000" - 61 and chair rail 3.000" - 75.

Our purple colored ceramic blend grinding wheel hogging at 2000 rpm, with a twenty-five-degree back clearance angle will rough grind a set of high-speed steel moulding cutters in a minimal amount of time. Read our article on the importance of having the profile knife grinder perfectly level, this commentary will insure prolonged use of your machinery while maintaining consistent perfection when grinding profile knives.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.000" / Depth of Cut = .479" (top knives) & .063" (bottom cutters.)

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
