Chair Rail 3" - 75
Chair Rail 3" - 75

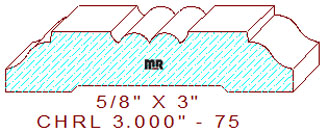

This 3" - 75 beaded chair rail measures 3.000" wide by .625" thickness. The symmetrical profile is comprised of two 11/64" radius half-round circles in the center, flanked by a 5/32" radius cove, attached to a 5/8" wide by 7/64" tall raised fillet, connected to a two tangent radius cyma reversa positioned on each side edge of the design. We have a few similar style patterns you may want to review and consider, chair rail 3.000" - 19, chair rail 3.000" - 61, and chair rail 3.000" - 76.
Utilize any of our decorative patterns to create a stylish moulding catalog for your millwork company, offer more eye-catching profiles to your clients while reducing production cost spent on molding knife design. Please let us help you in the transformation of your client's house being constructed into a home.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.000
Depth of Cut: 0.385
Bottom Cutter Head
Width: 3.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$238.00
$238.00
Total:
$476.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$253.00
$253.00
Total:
$506.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$275.50
$275.50
Total:
$551.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
