Crown 3" - 18

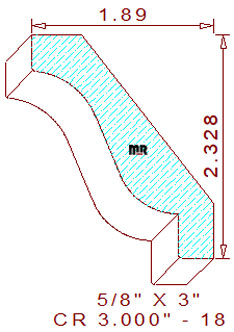

This 3" - 18 cyma recta crown mould measures 3.000" wide by .750" thickness. The attractive terminating profile comprises a 3/8" tall vertical line on top, connected to a two tangent radius cyma recta in the center, attached to a 15/32" tall vertical line below and a 3/8" wide horizontal line at the bottom of the design. We offer another profile in the same width for your review and consideration, crown molding 3.000" - 19.

The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevels set the installed height at 2-21/64" tall with a projection of 1-57/64" wide. Read our commentary about axial constant positioning for crown bevels. The article will help you dial this profile in axially on the first try when milling this detail, provided the machine is axially calibrated.
