Crown Moulding 3" - 19

Crown Moulding 3" - 19

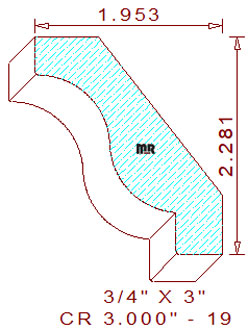

This cyma recta crown moulding 3" - 19 measures 3.000" wide by .750" thickness. The good-looking profile is comprised of a 3/4" radius convex arc, tangent off of a 3/4" radius concave semicircle creating a cyma recta in the center, connected to an 13/32" tall vertical line on the top. The lower portion of the design consists of a 15/32" tall vertical line, attached to a 31/64" wide horizontal line producing a squared fillet at the bottom of the pattern. The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevels set the installed height at 2-9/32" tall, with a projection of 1-61/64" wide. Two high points in the design were deliberately positioned on the same plane, our creative design features will assure outstanding hold down conditions while milling the detail on an industrial moulder, providing the pressure shoe is parallel to the machine bed plates.

We have a rather large group of similar style patterns with different widths, heights and projections, here are just a few sizes you may want to review and consider, crown moulding 1.500" - 9, crown 2.000" - 6, crown 2.500" - 1, crown 4.000" - 1, crown 5.500" - 44, crown 7.000" - 3, and crown 8.500". Need this profile template and a set of custom moulding knives quickly? We generally can have these cutters ground with any one of our premium quality high speed steels or carbide and shipped within twenty-four hours. We have artistic profiles from several different architectural eras, there are literally thousands of compelling profile designs to help match your creative style.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 3.000" / Depth of Cut = .459" (top knives).

Thickness = .750" / Depth of Cut = .387" (right blades) & .491" (left knives), only one template is required to make the side cutters.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
