Crown 3" - 28

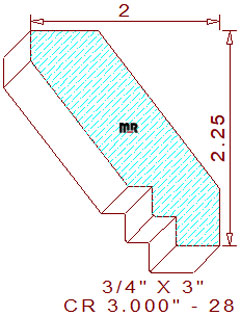

This southwest-themed 3" - 28 crown mould measures 3.000" wide by .750" thickness, allowing the detail to be milled sprung (laying horizontally flat) out of four-quarter lumber. The stunningly beautiful mission-style profile is composed of a 5/16" tall vertical line segment on the top left, attached to a 1-43/64" wide forty-five-degree splay faced line in the center, joined to two 5/16" tall by 1/4" wide perpendicular steps with a 15/32 horizontal line at the bottom of the design. The spring angles are fixed at thirty-eight and fifty-two degrees, these particular back bevels keep the inner profile parallel to the wall and ceiling as well as set the installed height at 2-1/4" tall with a projection of 2" broad.

Mirror Reflections provides the cut steel size on all their molding template designs, this critical information allows you to purchase the correct size width of knife steel before you start grinding procedures for production, this is just one more example of us caring about the overall success of your business.
