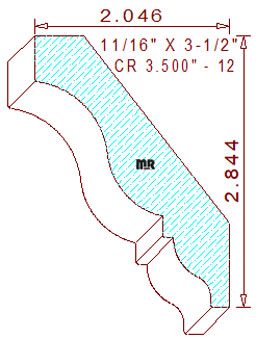

The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevels set the installed height at 2-27/32" tall with a projection of 2-3/64" wide. Two high points in the detail are intentionally positioned on the same level plane, this helpful design feature will assure excellent hold down conditions while milling the detail on an industrial moulder, providing the pressure shoe is set parallel to the bed plates. Take advantage of our specialized design skills, over thirty years of experience in wood moulding manufacturing, superior designed acrylic templates, and exceptional quality custom moulding knives.
For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.
Width = 3.500" / Depth of Cut = .345" (top knives).
Thickness = .687" / Depth of Cut = .317" (right blades) & .697" (left cutters).
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
