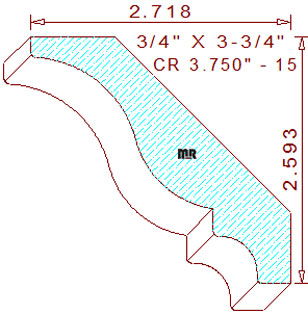

This Timeless Crown Moulding 3-3/4" - 15 measures 3.750" wide by .750" thickness with a depth of cut of .620" on the right vertical blades, .529" on the left vertical cutters, and a .291" depth of cut on the top horizontal set of moulding knives. We have a few other options in this same size width for your review and consideration, crown 3.750" - 2, crown 3.750" - 3, and crown 3.750" - 22, they all have slightly different dimensions on most of the detail, but mainly on height and projection.
The standard profile is comprised of a cyma recta flanked by two vertical fillets, connected to a 3/8" radius cavetto with a 11/32" wide horizontal fillet on the bottom of the pattern. The spring angles are fixed at forty-five degrees, search our bevels category by this degree to find a back bevel cutter appropriate for this graceful crown moulding design, these specific back bevels set the installed height at 2-19/32" tall with a projection of 2-23/32" wide. Two high points in the profile were intentionally positioned on the same level plane, this creative design feature will assure excellent hold down conditions while milling the detail on an industrial moulder, providing the moulder pressure shoe is properly set parallel to the moulder bed plates.
Ever wonder why some mouldings look and feel better than others in the industry? Please read our article on moulding knife marks, learn how machine feed rates, and rpm of the cutter head can directly affect the quality of your finished mouldings.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
