Crown 3-3/4" - 22

Crown 3-3/4" - 22

Crown 3-3/4" - 22

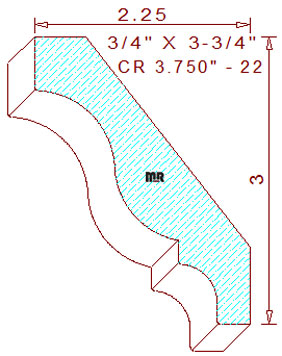

This definitive 3-3/4" - 22 crown mould measures 3.750" wide by .750" thickness. The traditional profile is comprised of a two tangent radius cyma recta in the center, flanked by an 11/16" tall vertical fillet on top and a 1/4" tall fillet below, connected to a 13/32" radius cavetto with an 11/32" wide horizontal fillet on the bottom of the pattern. The spring angles are fixed at thirty-eight and fifty-two degrees; search our bevels category by these degrees to find two back bevel cutters appropriate for this classic crown moulding design, these specific back bevels set the installed height at 3" tall with a projection of 2-1/4" wide. We have a few other similar moulding patterns in this same size width for your review and consideration, crown 3.750" - 3, crown 3.750" - 15, and crown 3.750" - 2, they all have slightly different dimensions on height and projection.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.420
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.494
Top Cutter Head
Width: 3.750
Depth of Cut: 0.360
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$161.75
$268.00
Not Needed
Total:
$591.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$171.25
$286.00
Not Needed
Total:
$628.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$180.75
$304.00
Not Needed
Total:
$665.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
