Crown Moulding 3-3/4" - 3

Crown Moulding 3-3/4" - 3

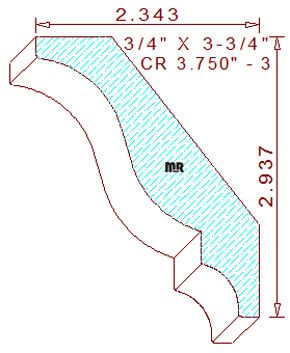

This Standard Crown Moulding 3-3/4" - 3 measures 3.750" wide by .750" thickness, the profile is comprised of two tangent radiuses that form a cyma recta in the middle flanked by two vertical fillets one of which is attached to a cavetto and horizontal fillet positioned at the bottom of the pattern.

The spring angles are fixed at thirty-eight and fifty-two degree which sets the installed height at 2-15/16" tall with a projection of 2-11/32" wide. The upper and lower high points in the design are intentionally positioned on the same level plane which will create superior hold down conditions while milling this profile on an industrial style moulder. We have a few other options in this same size width for your review and consideration, crown 3.750" - 2, crown 3.750" - 15, and crown 3.750" - 22, they all have slightly different dimensions on height and projection.

Need this profile template and a set of custom moulding knives quickly? We generally can have these cutters ground with any one of our premium quality high speed steels or carbide and shipped within twenty-four hours. We have artistic profiles from several different architectural eras, there are literally thousands of compelling moulding designs to help match your creative style.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
