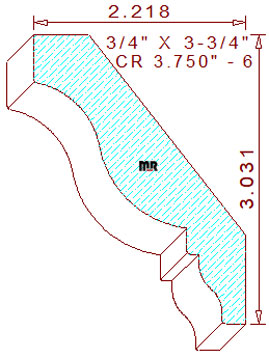

The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevels set the installed height at 3-1/32" tall with a projection of 2-7/32" wide. Two high points in the detail are deliberately positioned on the same level plane, our helpful design features will assure excellent hold down conditions while milling the detail on an industrial moulder, providing the pressure shoe is set parallel to the bed plates.Custom-made elegance is a phrase used to define the beauty, style and artisanship of thousands of our moulding designs.
For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.
Width = 3.750" / Depth of Cut = .362" (top knives).
Thickness = .687" / Depth of Cut = .358" (right blades) & .729" (left cutters).
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
