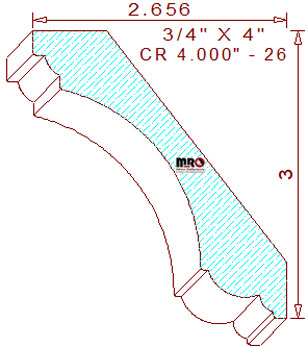

This Medium Sized Crown Moulding 4" - 26 measures 4.000" wide by .750" thickness with a depth of cut of .476" on the right vertical profile blades, a .463" depth of cut on the left cutters and a .467" depth of cut on the top horizontal moulding knives. We have a small group of similar style profiles with different widths, heights and projections you may want to review and consider for other rooms in the home, crown moulding 2.000" - 4, crown 3.000" - 17, crown 5.500" - 12, and crown 7.000" - 19.
The striking profile is comprised of a 1-57/64" radius cove in the center, connected to an 9/32" radius ovolo with a 1/4" tall vertical line on the top. The lower portion of the design consists of a 5/64" wide horizontal line connected to a 27/64" radius half round circle, joined to a smaller 11/64" radius arc with a 9/64" wide squared fillet at the bottom of the pattern. The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevels set the installed height at 3" tall, with a projection of 2-21/32" wide. Three high points in the design were intentionally positioned on the same plane, our superior design features will assure excellent hold down conditions while milling the detail on an industrial moulder, providing the pressure shoe is parallel to the moulder bed plates.
Custom-made elegance is a phrase used to define the beauty, style and artisanship of thousands of our moulding designs. Weather you own a recently built house or older style residence, we have the ability, knowledge and experience to create moulding profiles that will complement the architectural décor of your client's elegant home.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
