Crown Moulding 7" - 19

Crown Moulding 7" - 19

Crown Moulding 7" - 19

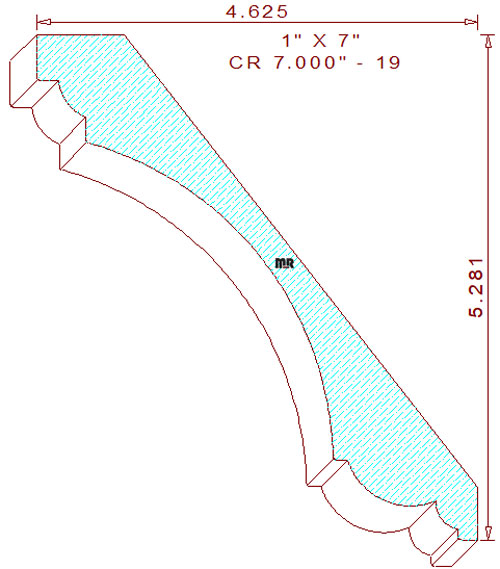

This Elegant Crown Moulding 7" - 19 measures 7.000" wide by 1.000" thickness with a depth of cut of .562" on the right vertical profile cutters, a .431" depth of cut on the left blades, and a .750" depth of cut on the top horizontal knives. We have a small group of similar style profiles with different widths, heights, and projections you may want to review and consider for other rooms in the home, crown moulding 2.000" - 4, crown 3.000" - 17, crown 4.000" - 26, and crown 5.500" - 12.

The lovely profile is comprised of a 3-31/64" radius cove in the center, connected to an ovolo with a 31/64" tall vertical line at the top. The lower portion of the design consists of a 5/32" wide horizontal line, connected to a 11/16" radius half round circle joined to a smaller 9/32" radius arc with a 7/32" wide squared fillet at the bottom of the pattern. The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevels set the installed height at 5-9/32" tall, with a projection of 4-5/8" wide. Three high points in the design were intentionally positioned on the same plane, our skilled design features will assure excellent hold down conditions while milling the detail on an industrial moulder, providing the pressure shoe is parallel to the moulder bed plates.

We pride ourselves on providing some of the finest quality acrylic templates & profile knives in the woodworking industry, excellent customer service with affordable pricing. Offer us an opportunity to demonstrate our abilities and you be pleasantly surprised with our services.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
