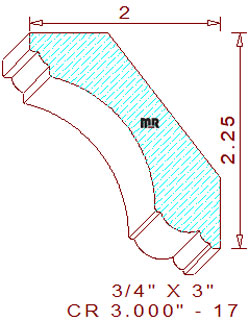

This 3" Crown Moulding - 17 measures 3.000" wide by .750" thickness with a depth of cut of .508" on the right vertical profile cutters, a .584" depth of cut on the left blades, and a .341" depth of cut on the top horizontal moulding knives. We have a small cluster of similar style profiles with different widths, heights, and projections you may want to review and consider for other rooms in the home, crown moulding 2.000" - 4, crown 4.000" - 26, crown 5.500" - 12, and crown 7.000" - 19.
The sophisticated profile is composed of many geometrical shapes including an ovolo, cove/cavetto, fillets and cascading quarter round beads. The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevels set the installed height at 2-1/4" tall, with a projection of 2" wide. Three high points in the design were intentionally positioned on the same plane, our proprietary design features will assure excellent hold down conditions while milling the detail on an industrial moulder, providing the pressure shoe is parallel to the moulder bed plates.
Need this profile template and a set of custom moulding knives quickly? We generally can have these cutters ground with any one of our premium quality high speed steels or carbide and shipped within twenty-four hours. We have artistic profiles from several different architectural eras, there are literally thousands of compelling moulding designs to help match your creative style.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
