Crown 4-1/2" - 1

Crown 4-1/2" - 1

Crown 4-1/2" - 1

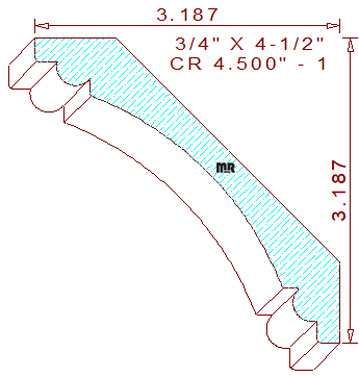

This decorative 4-1/2" - 1 crown mould measures 4.500" wide by .750" thickness. The symmetrical profile is comprised of a 3-31/64" radius cove in the center, flanked by an ovolo consisting of a 13/64" radius half circle, flanked by small fillets with a 1/4" squared fillet on the top and bottom of the pattern. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height and projection at 3-3/16" tall and wide. We have a whole family of similar profiles with different heights and projections you may want to review and consider, here are just a few of them, crown 3.000" - 30,crown 4.000" - 38, crown 7.250" - 10," crown 5.250" - 10, crown 4.250" - 33, and crown 4.950" - 12.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.597
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.597
Top Cutter Head
Width: 4.500
Depth of Cut: 0.438
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$118.75
(Template not needed)
$305.50
Not Needed
Total:
$586.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$128.25
(Template not needed)
$326.50
Not Needed
Total:
$626.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$137.75
(Template not needed)
$347.50
Not Needed
Total:
$666.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
