Crown Moulding 7-1/4" - 10

This Popular Crown Moulding 7-1/4" - 10 measures 7.250" wide by .812" thickness with a depth of cut of .624" on both the right and left vertical profile cutters, and a .532" depth of cut on the top horizontal knives. This is a fashionable design is one of a whole family of similar profiles with different heights and projections you may want to review and consider, here are just a few of them, crown moulding 3.000" - 30, crown 4.000" - 38, crown 4.500" - 1, crown 5.250" - 10, crown 4.250" - 33, and crown 4.950" - 12.

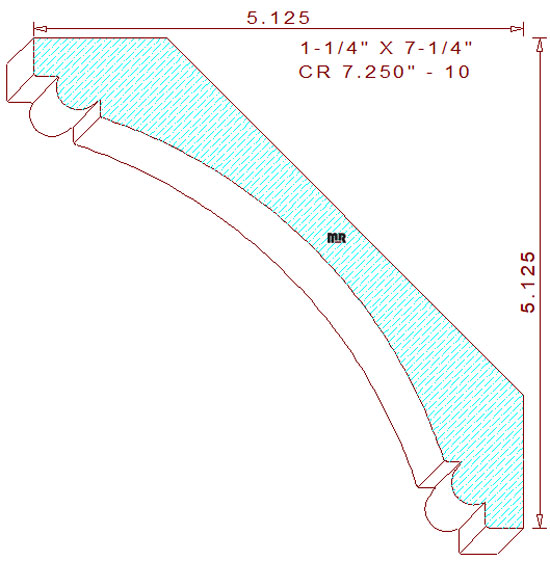

The symmetrical profile is comprised of a 4-29/64" radius concave cove in the center, flanked by an ovolo consisting of a 1/4" radius flanked by small fillets with a 1/4" squared fillet on the top and bottom of the pattern. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height and projection at 5-1/8" tall and wide. Two high points in the design were intentionally positioned on the same plane, our specialized design features will assure excellent hold down conditions while milling the detail on an industrial moulder, providing the pressure shoe is parallel to the bed plates.
