Crown 4-23/32"

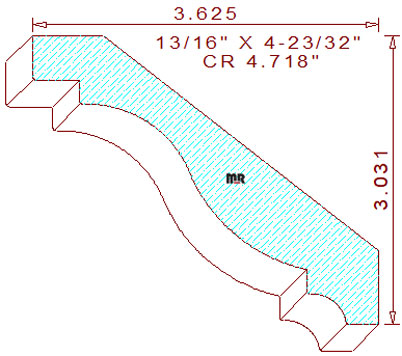

This 4-23/32" colonial crown mold measures 4.722" width by .812" thickness, permitting the use of four-quarter lumber for milling sprung (laying horizontally flat) on a commercial moulder. The traditional terminating detail contains a 15/32" vertical line segment on the top left. The fillet connects to a 1/4" tall by 31/64" perpendicular notch merged with a two tangent radius cyma recta in the center with a 23/64" cove flanked by a 1/4" vertical line segment above and an 11/32" flat line below. The fixed spring angles are set at thirty-eight and fifty-two degrees; these particular back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 3-1/32" tall with a projection of 3-5/8" across the top.

Proper tool balance is significant to your milling operation. Read how critical it is to have balanced knives, screws, and gibs in the cutter head. There is also information on the problems it can create if you neglect to focus on this simple task. Protect your current woodworking machinery; your clients will appreciate superior millwork and a disciplined manufacturing approach.
