Crown Moulding 5-1/2" - 15

Crown Moulding 5-1/2" - 15

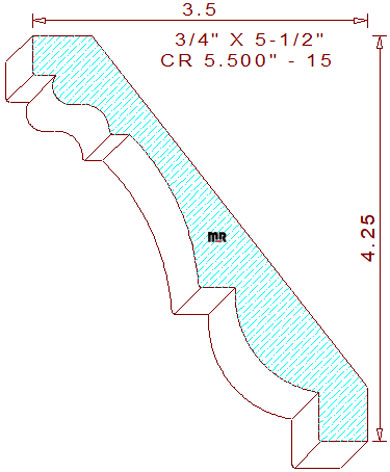

This elegant crown moulding 5-1/2" - 15 measures 5.500" wide by .750" thickness, enabling the detail to be milled sprung (laying horizontally flat) out of four quarter lumber. The pattern is composed of a combination of graceful geometrical shapes including a small two tangent radius cyma reversa flanked by horizontal and vertical lines segments in the upper section, attached to an elliptical shaped cavetto in the center and a beautiful 1-1/32" radius ovolo in the lower portion of the design. The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevels set the installed height at 4-1/4" tall with a projection of 3-1/2" wide. We offer a few similar styles of this design in the same width for your review and consideration, crown 5.500" and crown 5.500" - 25, we also provide this pattern in different widths, just input the width size you would like to view in the search boxes provided.

Architects, interior designers, lumber mills and manufacturers have been utilizing our vast variety of creative designs for years, we trust you will find that special profile to enhance the architectural style of your client's home. Download all our free moulding dxf files, see how easy the services we provide can increase productivity while reducing manufacturing cost.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 5.500" / Depth of Cut = .500" (top knives.)

Thickness = .750" / Depth of Cut = .398" (right blades) & .467" (left cutters.)

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $5.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
